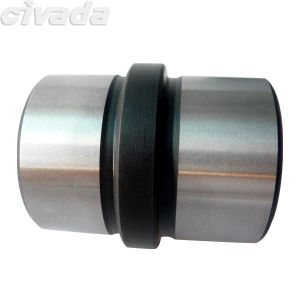

High Precision Guide Bushing HASCO , DIN , AISI for Plastic Mold
Quick Detail:
Place of Origin | Guangdong, China (Mainland) |
Brand Name | Civada |
Model Number | GP-85 |
Shaping Mode | Plastic Injection Mould |
Product Material | Metal |
Product | Vehicle Mould |
Item name | Guide pillar |
Material | SUJ2 / 20cr etc |
Hardness | HRC58-62 |
Heat treatment | Carburising/Hot frequency/Vacuumed |
Standard | HASCO ,DIN, AISI, JIS,etc |
OEM | Welcome |
Tolerance | m5 |
Description:
Item name: guide bush
Tolerance: m5
Usage: Plastic mold
Material: SUJ2 / 20cr etc
Standard: HASCO ,DIN, AISI, JIS,etc
Hardness: HRC 58~62 or determined by material
Applications:
Plastic Mold
Specifications :
Material | SUJ2, 20Cr, 40Cr, DIN1.2067 |
Hardness | 55~58HRC, or determined by material |
Tolerance | m5 or determined by material |
Heat treatment | Carburising/Hot frequency/Vacuumed |
Delivery time | Normally 5-7 working days |
Shipping mode | by air (TNT, DHL, UPS, FEDEX )or by sea |
QC | 1) Technicians self-check in production 2) Engineer spot check in production 3) QC inspects after mass production finished 4) International sales who were trained the technical know-how spot check before shipping |
Packing | Inner plastic bag, outer carton box, and we can also pack products according to your requirements. |
Main Markets | North America, South America, Eastern Europe , West Europe , North Europe, South Europe, South Asia, Africa African |
Main Products | Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc. |
How to order | * You send us drawing or sample * We carry through project assessment * We give you a design * You think the design is ok * We make the sample and send it to you * You think the sample is good then place an order and pay us 30% deposit * We start to make the product * When the goods is done, we deliver it to Shengzhen Yiantian * You pay us the balance after you see the B/L Copy * The whole order is done, thank you!! |
Competitive advantages:
Competitive price, Competitive price, Quick delivery time, Made-to-order service available, Excellent customer support
|
|
