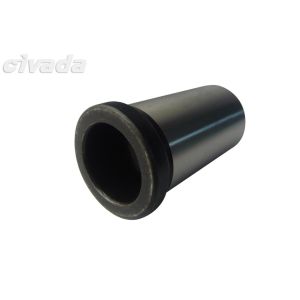

MISIMI collar Guide bushing smooth high grinding for plastic mould

1. Material

SUJ2 ( 52100 )( 1.2067 ) equivalent

20Cr ( 5120 ) ( 20Cr4 ) ( SCr435 ) equivalent

2. Hardness

58 HRC ~ 62 HRC

3. Specifications

• Standards : MISIMI / DIN / AISI etc.
• Mounting method flange fixing
• Further dimensions, lengths and materials available on request
• Customized sizes are accepted
• Service: OEM available , and standard with stock
• Tolerance : press-fit part: m5, sliding part:-0.001 ~ -0.005mm, Head : - 0.2 ~ - 0.1mm
• Diameter arrage : Φ 8.0mm ~ Φ 120 mm or according to customer’s demand .
• Polishing: can make close to Ra 0.4 standard is R0.8
• Good-quality and precision
• Nitrogen treatment to improve the hardness
• More products can be produced according to PUNCH / DANLY / DME / HASCO / TOHATSU / FIBRO / AGATHON / STRACK / PEDROTTI / RAYMOND / FUTABA / SANKYO / PROGRESSIVE / RABOURDIN , etc.
